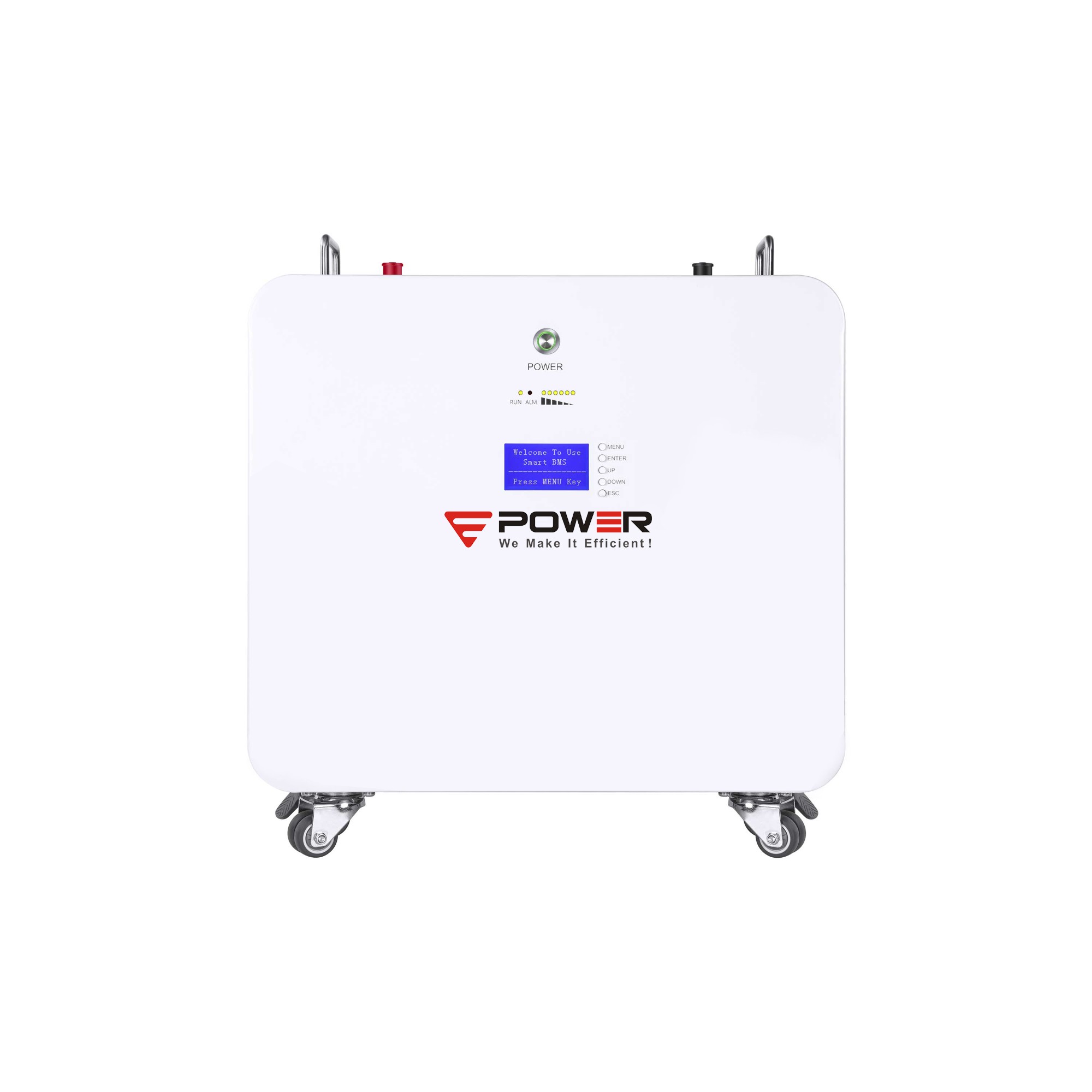

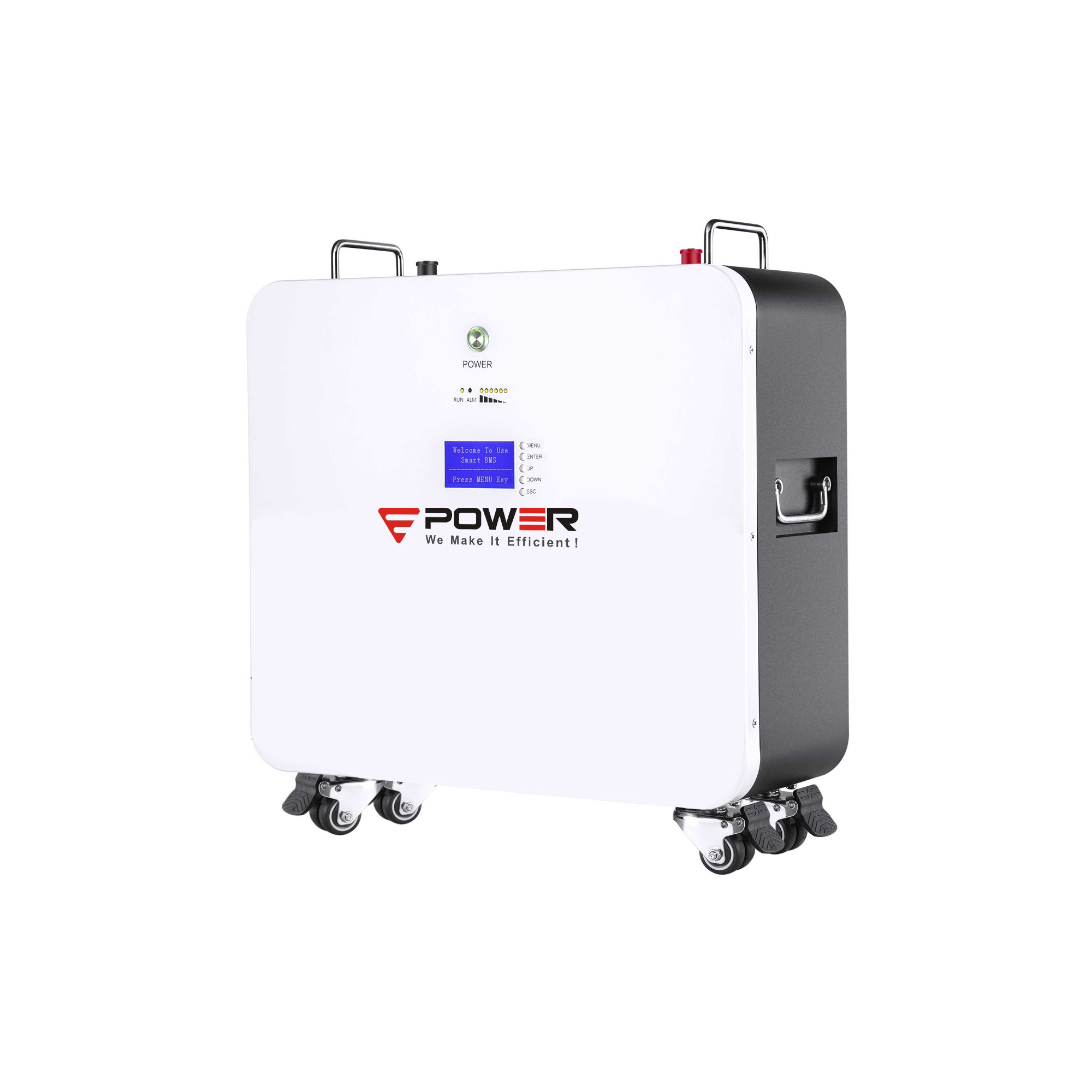

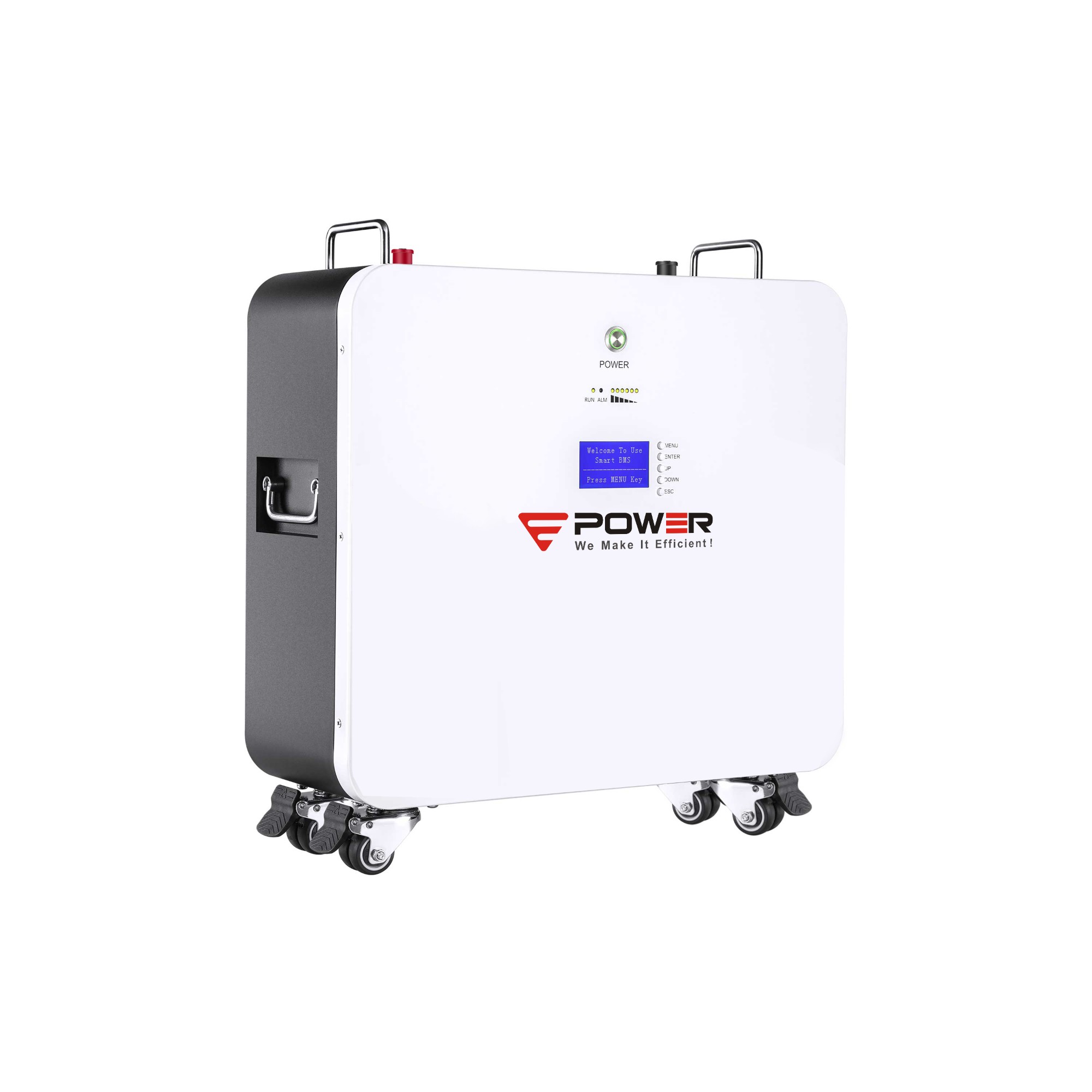

EP24200ES 25.6V200AH 5kWh

home solar energy storage system
- Top brand A+ grade LiFePO4 battery cells
- Moveable / wall-mounted / floor standing
- 6000+ life cycles, 10+ years design life
- Built-in BMS with smart control
- With SOC design
- Communication protocols compatible with most inverters

Home Solar Energy Storage Battery 5KWH EP24200ES 25.6V200AH

Battery Pack Model No.	EP24200ES
Nominal Voltage	25.6V
Nominal Capacity	200Ah (5.12kWh)
Battery Type	LiFePO4
BMS	Built-in smart BMS with SOC
Open Voltage	21.6V-29.2V
Charging Cut-off Voltage	29.2V
Discharging Cut-off Voltage	22.4V
Standard Discharging Current	40A
Max. Discharging Current	200A
Max. Charging Current	100A
Load Power	≤ 5.12kW
Charging Efficiency	100% at 0.2C
Discharging Efficiency	96% ~ 99% at 1C
Self Discharge Rate	≤ 2% / month （25℃）
Life Cycle	≥ 6000 (80% DOD, 25℃)
Water Proof Rating	IP43
Charging Temperature	0 ~ 45℃
Discharging Temperature	-20 ~ 60℃
Storage Temperature	-10 ~ 45℃

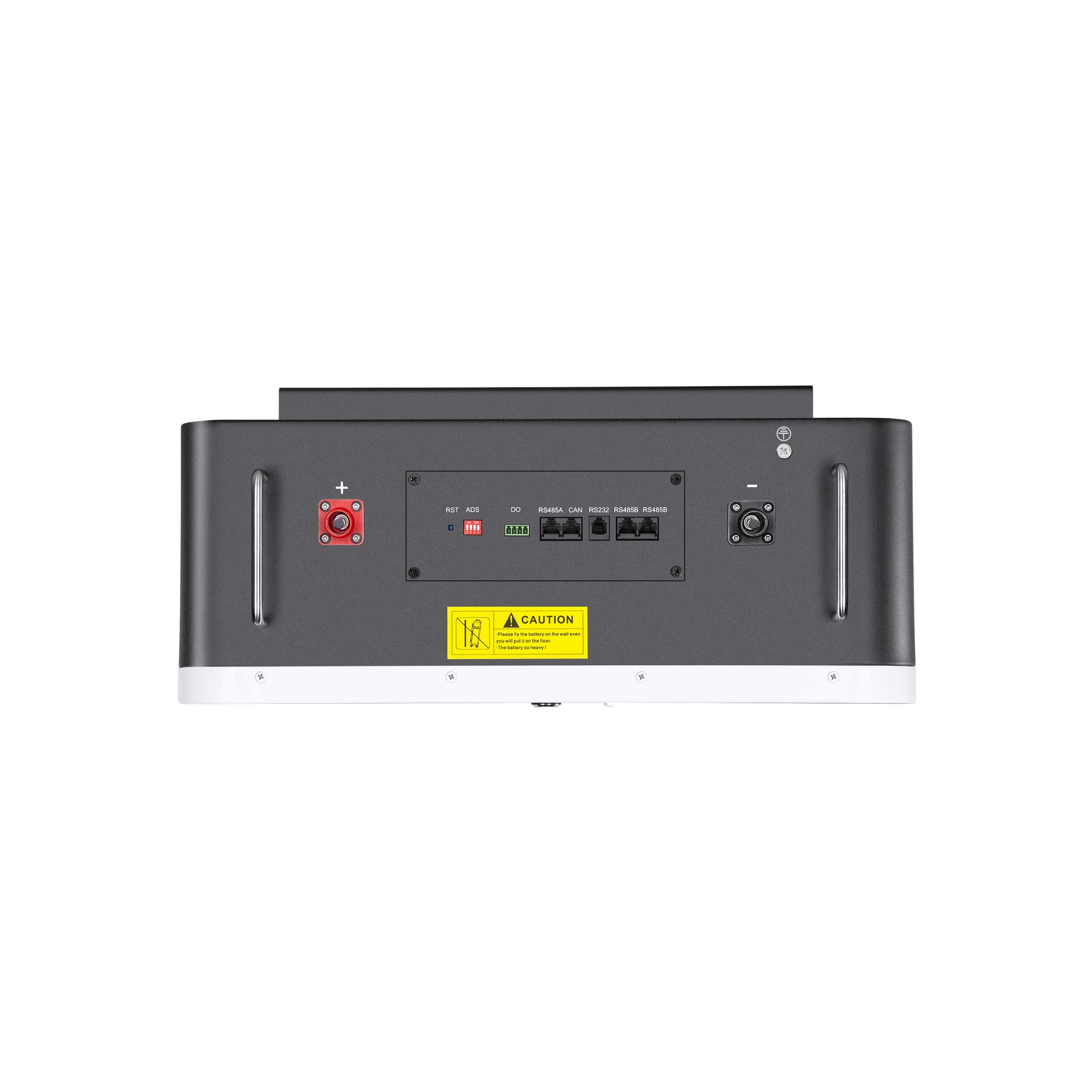

Communication Protocals	CANBus / RS485 / RS232 (customization available)
Dimension	442(L)480(W)195(H)mm
Weight	≈ 53kg
Certificates	UL, CE, ROHS, MSDS, KC, BIS, UN38.3 etc.
