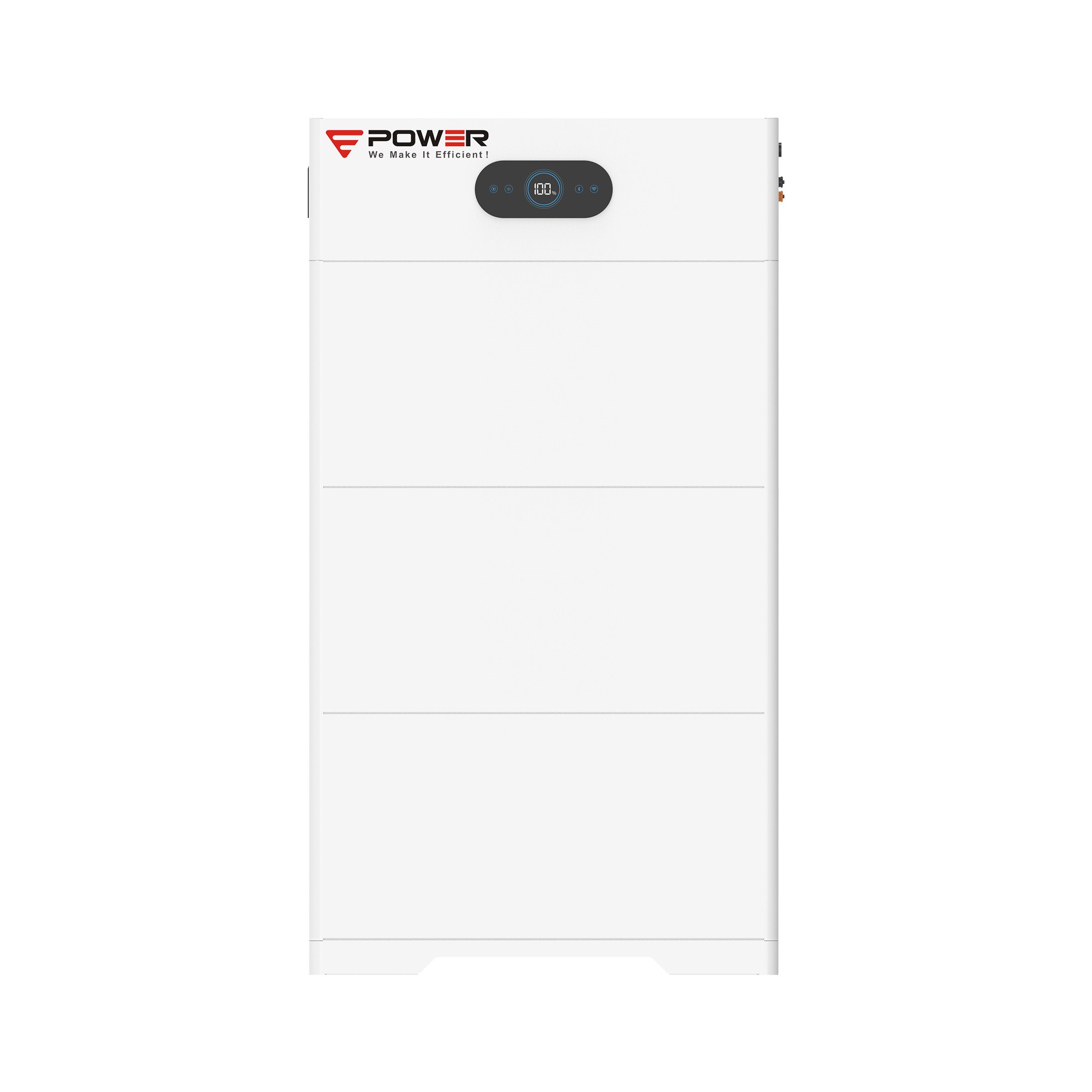

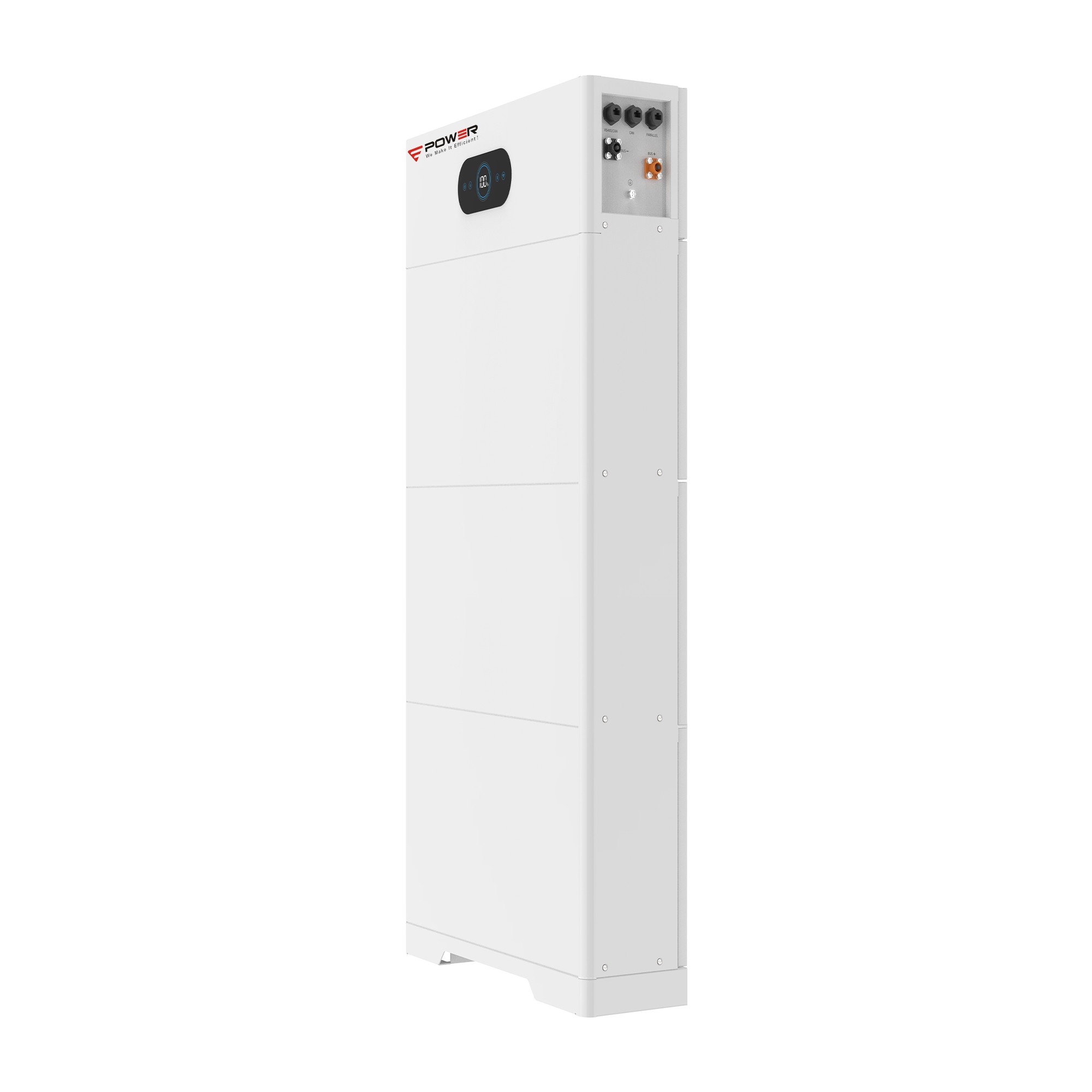

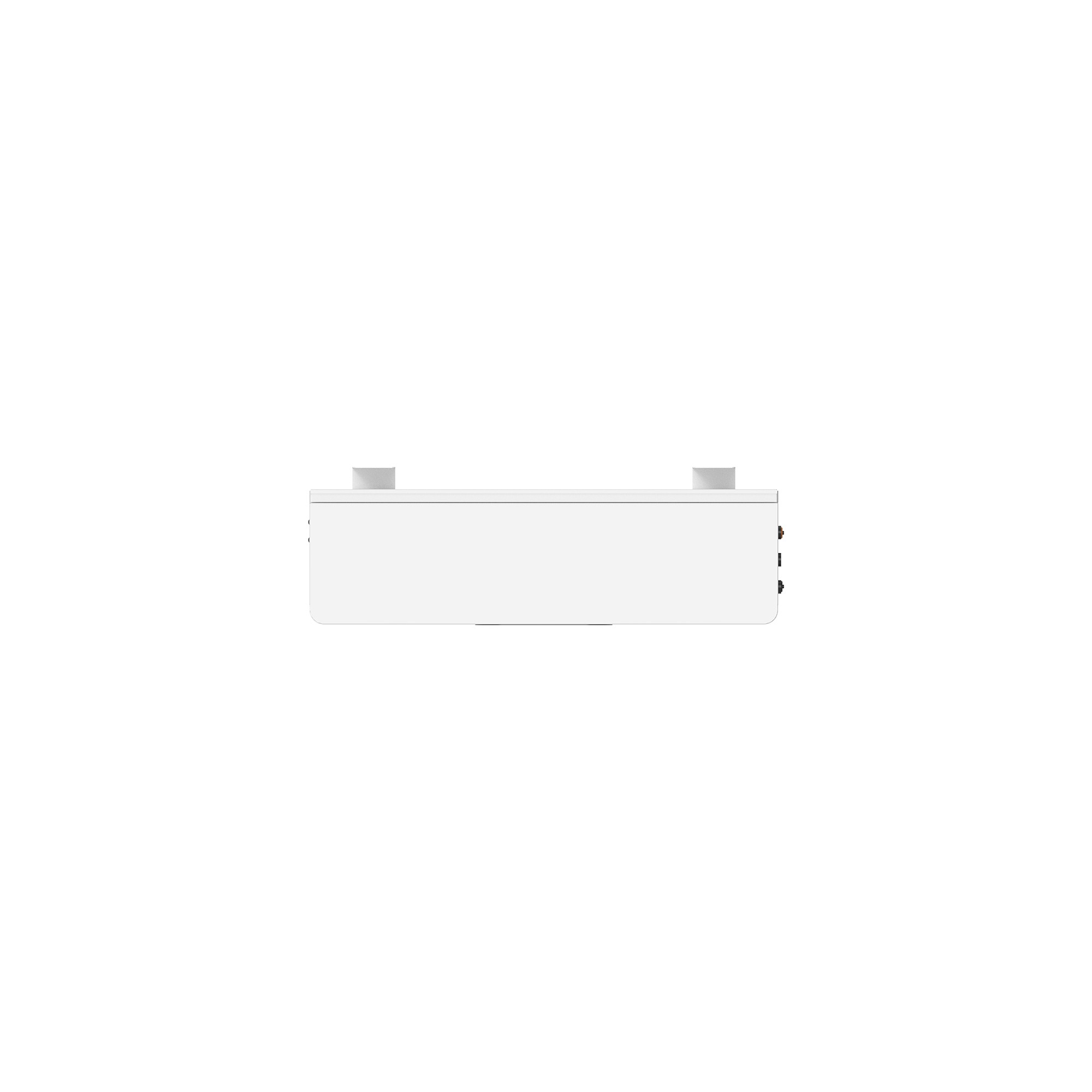

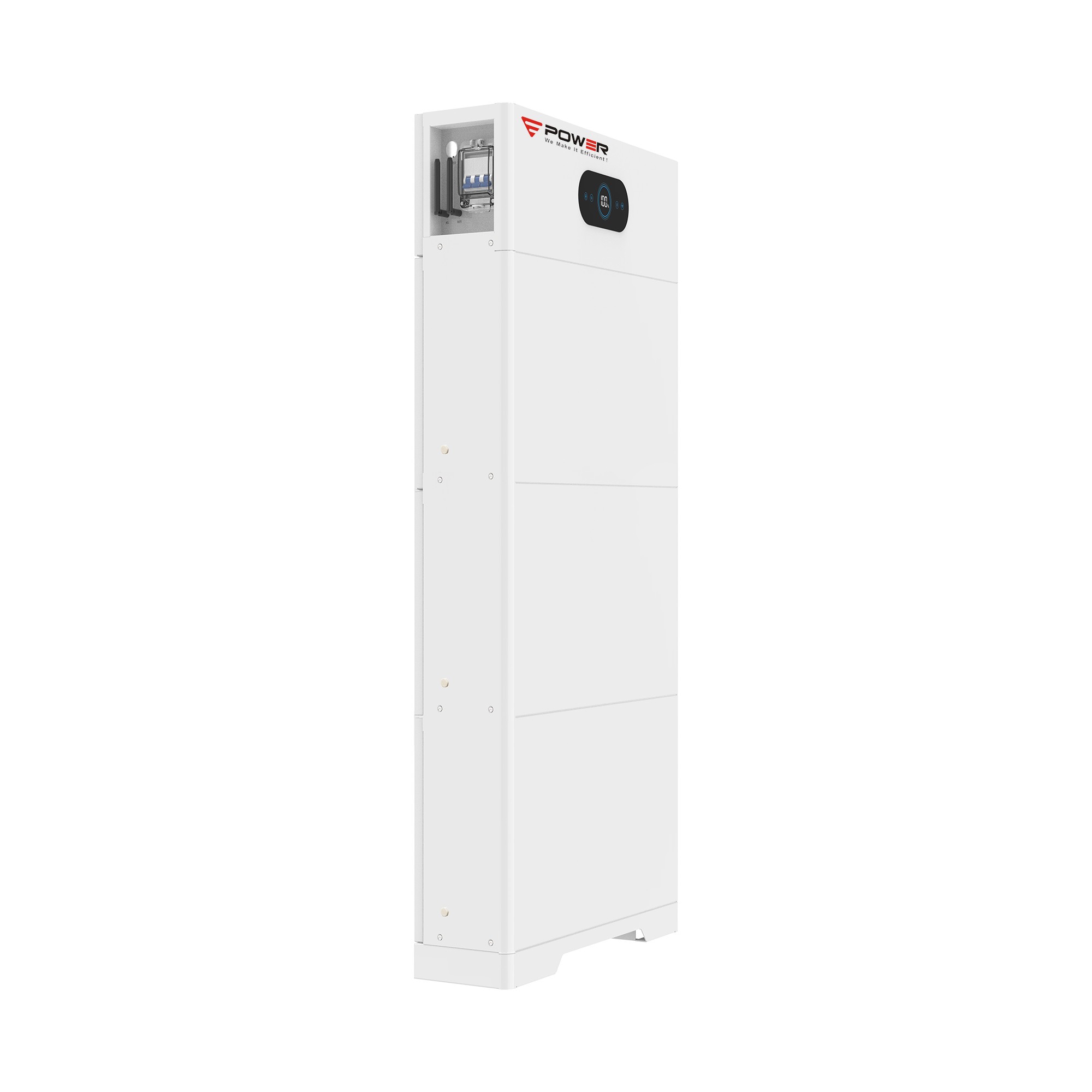

EP30050HV 307.2V50AH 15kWh

- Stackable home energy storage battery system
- Top branded A+ battery cells
- Intelligent BMS for remote control
- High voltage, high efficiency, water proof
- Customized design available

Home Solar Energy Storage Battery 15KWH EP30050HV 307.2V50AH

Battery Pack Model No.	EP-LFS30050HV
Nominal Voltage	307.2V
Nominal Capacity	50Ah (15.36kWh)
Battery Type	LiFePO4
BMS	Built-in smart BMS with SOC
Open Voltage	220.8V-345.6V
Max. Discharging Current	52A
Max. Charging Current	52A
Load Power	≤ 15.36kW
Charging Efficiency	100% at 0.2C
Discharging Efficiency	96% ~ 99% at 1C
Self Discharge Rate	≤ 2% / month （25℃）
Life Cycle	≥ 6000 (80% DOD, 25℃)
Water Proof Rating	IP65
Charging Temperature	0 ~ 45℃
Discharging Temperature	-20 ~ 60℃
Storage Temperature	-10 ~ 45℃
Communication Protocals	CANBus / RS485 / RS232 (customization available)
Dimension	655(L)189(W)1195(H)mm
Weight	≈ 164kg
Certificates	UL, CE, ROHS, MSDS, KC, BIS, UN38.3 etc.
