LIP503450-1S1P-3.7V1000MAH

- Battery size, capacity & PCB can be customized
- High capacity density, low self discharge rate
- High safety, stable charge & discharge
- Low temperature discharge
- Long life cycles ≥500

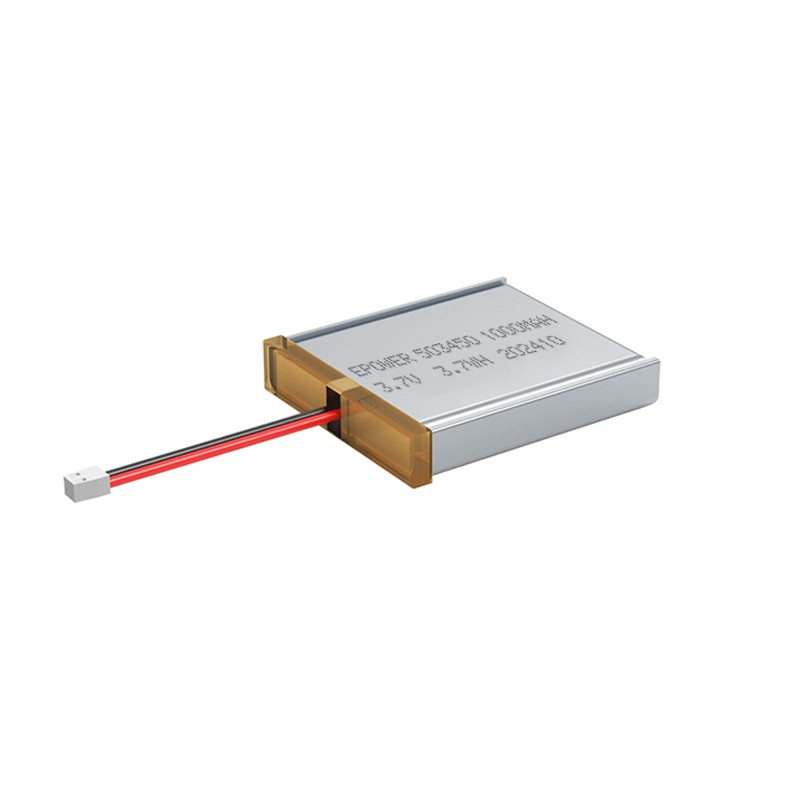

Lithium Polymer Battery Pack LIP503450-1S1P 3.7V1000MAH

Battery Pack Model No.	LIP503450-1S1P
Nominal Voltage	3.7V
Nominal Capacity	1000MAH
Standard Charging Current	200mA (0.2C)
Max. Charging Current	500mA (0.5C)
Standard Discharging Current	200mA (0.2C)
Max. Continuous Discharging Current	1000mA (1C)
Discharge Cut-off Voltage	3.0V
Charging Temperature	0 ~ 45℃
Discharging Temperature	-20 ~ 60℃
Life Cycles	≥ 500（80%DOD，25℃）
PCB Protection	Over charging, over current, short circuit, over temperature
Certificates	UL, CE, ROHS, MSDS, KC, BIS, UN38.3 etc.
