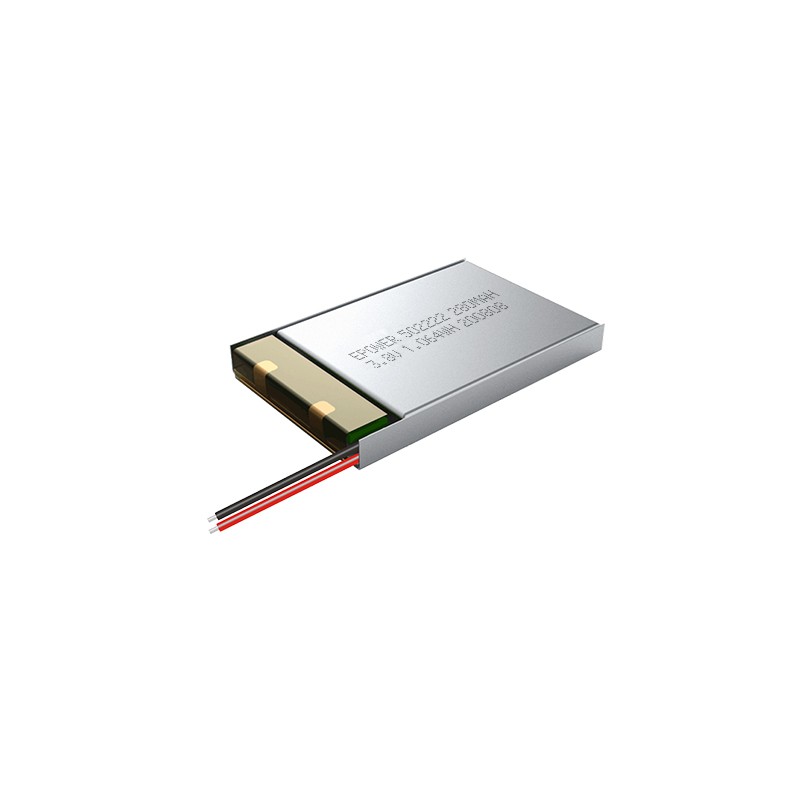

LIP502222-1S1P 3.8V280MAH

- High voltage Li-polymer battery
- Battery size, capacity & PCB can be customized
- High capacity density, low self discharge rate
- High safety, stable charge & discharge
- Low temperature discharge
- Long life cycles ≥500

High Voltage Lithium Polymer Battery LIP502222-1S1P 3.8V280MAH

Battery Pack Model No.	LIP502222-1S1P
Nominal Voltage	3.80V
Nominal Capacity	280MAH
Standard Charging Current	56mA (0.2C)
Max. Charging Current	140mA (0.5C)
Standard Discharging Current	56mA (0.2C)
Max. Continuous Discharging Current	280mA (1C)
Discharge Cut-off Voltage	6.0V
Charging Temperature	0 ~ 45℃
Discharging Temperature	-20 ~ 60℃
Life Cycles	≥ 500（80%DOD，25℃）
PCB Protection	Over charging, over current, short circuit, over temperature
Certificates	UL, CE, ROHS, MSDS, KC, BIS, UN38.3 etc.
